Product Description:
High Voltage Vacuum Relay is an ideal high voltage switching relay
with excellent performance. It features high rated voltage of up to
500V, contact resistance of less than 50mΩ, rated frequency of
50/60Hz, contact form of 1A, 1B, 1C, and rated load of AC/DC. It is
widely used in the fields of industrial control, power
distribution, and automotive industry. It provides safe, reliable,
and fast high voltage switching, and its vacuum technology ensures
high stability and long service life. It is also characterized by
its high efficiency, low power consumption, and low failure rate.
In short, the High Voltage Vacuum Relay is a perfect choice for
high voltage applications.
Features:
- Product Name: High Voltage Vacuum Relay
- Dielectric Strength: >2KV
- Operating Temperature: -20~+80℃
- Rated Current: Vacuum Relay
- Humidity Range: 5~95%RH
- Rated Load: AC/DC
- High Voltage Switching Relay
- Vacuum Voltage Relay
- High Voltage Switching Relay
Technical Parameters:
| Property | Details |
|---|
| Storage Temperature | 25℃ |
| Contact Material | Silver Alloy Copper, Tungsten |
| Insulation Resistance | >100MΩ |
| Contact Form | 1A, 1B, 1C |
| Operating Temperature | -20~+80℃ |
| Coil Voltage | DC: 12V, 24V |
| Rated Load | AC/DC |
| Life Expectancy | 10,000,000 Times |
| Contact Resistance | <50mΩ |
| Humidity Range | 5~95%RH |
Applications:

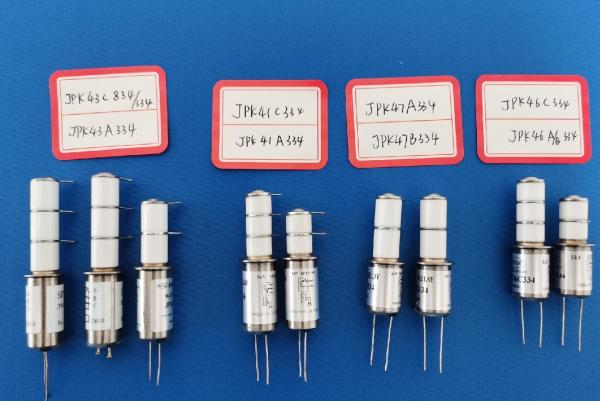

High Voltage Vacuum Relay, also known as a High Voltage Relay, is a
reliable and durable electrical component used to provide
electrical isolation and switching of high voltages. The Vacuum
Voltage Relay is produced by WPVAC with model number JPK, and
features a contact material of silver alloy copper and tungsten,
with an operating temperature range of -20~+80℃ and a storage
temperature of 25℃. The relay supports a coil voltage of 12V and
24V, and three contact forms: 1A, 1B, and 1C. With its high voltage
protection and excellent performance, WPVAC's High Voltage Vacuum
Relay is widely used in various applications. WPVAC provides timely
and reliable deliveries of this product, with 2000pcs available
every month and a delivery time of 7 days, and payment accepted
through T/T.
Customization:
Customized High Voltage Vacuum Relay services are available from
WPVAC. Our product, model JPK, is made in China and comes with a 7
days delivery time. The payment terms are delivered by T/T, and we
have a supply ability of 2000pcs/month. The contact resistance is
less than 50mΩ and the rated frequency is 50/60Hz. The contact
material is silver alloy copper and tungsten, and the coil voltage
is DC 12V and 24V. We offer three types of contact forms: 1A, 1B
and 1C.
Support and Services:
High Voltage Vacuum Relay Technical Support and Service
We offer technical support and service for our High Voltage Vacuum
Relay product. Our team of experts is available to answer any
questions and provide assistance with installation, maintenance,
and repairs.
Our comprehensive service and support includes:
- Telephone support
- Email support
- On-site support
- Scheduled maintenance
- Warranty coverage
For more information or to get started with our High Voltage Vacuum
Relay service and support, please contact us today.
Packing and Shipping:
Packaging and Shipping
High Voltage Vacuum Relay products must be handled with care and
appropriate packaging to protect from damage during shipping.
The following procedures should be followed when packaging and
shipping the High Voltage Vacuum Relays:
- Use the appropriate shipping container and packing materials to
ensure the product is secure and protected.
- Make sure the container is properly sealed and that the product is
secure during shipment.
- Label the container with the appropriate shipping information and
handling instructions.
- Ensure the container is properly labeled with the appropriate
hazardous material symbols and warnings.
- Be sure to include any necessary shipping documents and invoices
with the shipment.
